Dongfeng 4X2 One-Drive-Five Car Carrier Flatbed Wrecker Towing TruckA flatbed wrecker truck (also called a tow, a breakdown truck, recovery vehicle or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location. A flatbed wrecker truck is distinct from a motor carrier that moves multiple new or used vehicles simultaneously in routine transport operations. Flat wreckers are generally used in vehicles mainly used for road failures, illegal vehicles in cities, and rescue operations.
The core component is the engine. The engine has a good horsepower and is comfortable to use. On the contrary, it is more laborious to use. At the same time, the gearbox cannot be ignored! The gearbox is to help the engine perform its best performance, is used to coordinate the engine's speed and the actual speed of the wheel. The flatbed wrecker uses the Chaochai engine and has a horsepower of 120. It has good performance and the emission standard is Euro 2. Dongfeng Chaochai Engine is a well-known brand in China and its quality is guaranteed. At the same time, it uses a 5-speed gearbox with a reverse gear to meet the general road driving needs. Finally, we also provide a one-year warranty period. In one year, the three components of the engine, gearbox and the axle have any damage, and we promise to fix it. You can rest assured to purchase our flat wrecker without any concerns
Technical Date
| Description | Dongfeng One Carry Two Recovery Truck |
| Drive Model | 4x2 |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7420X2300X2540 |
| Wheel base (mm) | 3800 |
| Overhang (front/rear) (mm) | 1180/2440 |
| Wheel track (front/rear) (mm) | 1835/1640 |
| Approach/Departure angle(°) | 20/10 |
| Weight in KGS | Curb Weight | 5495 |
| GVW. | 7490 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | CY4102 |
| Type | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 120HP |
| Emission standard | Euro II |
| Gearbox | 5 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 180 |
| Tire | 7.50R16 , 6pcs + 1 spare tire |
| Brakes | Exhaust brake |
| UPPER |
| Platform Organ | LXW(mm) | 5400x2100 |
| Platform power stroke(mm) | 2680 |
| Min angle(°) | 7.6 |
| Max lifting capacity(kg) | 3000 |
| Winch rating pulling capacity(kg) | 4000 |
| Length of steel(m) | 21 |
| Hoisting Organ | Max under-hoisting capacity(mm) | 1300 |
| Rating under-hoisting capacity(mm) | 1005 |
| Fully extended max under-hoisting capacity(mm) | 700 |
| Rating under-pulling capacity(kg) | 5000 |
| With auxiliary wheels, hooks, bundling belt, automatic sliding plate; |
Chassis brand :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

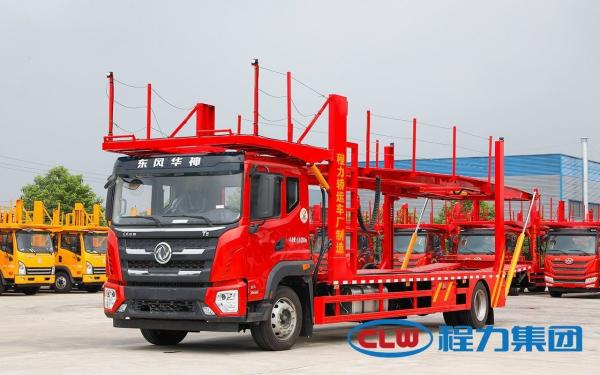

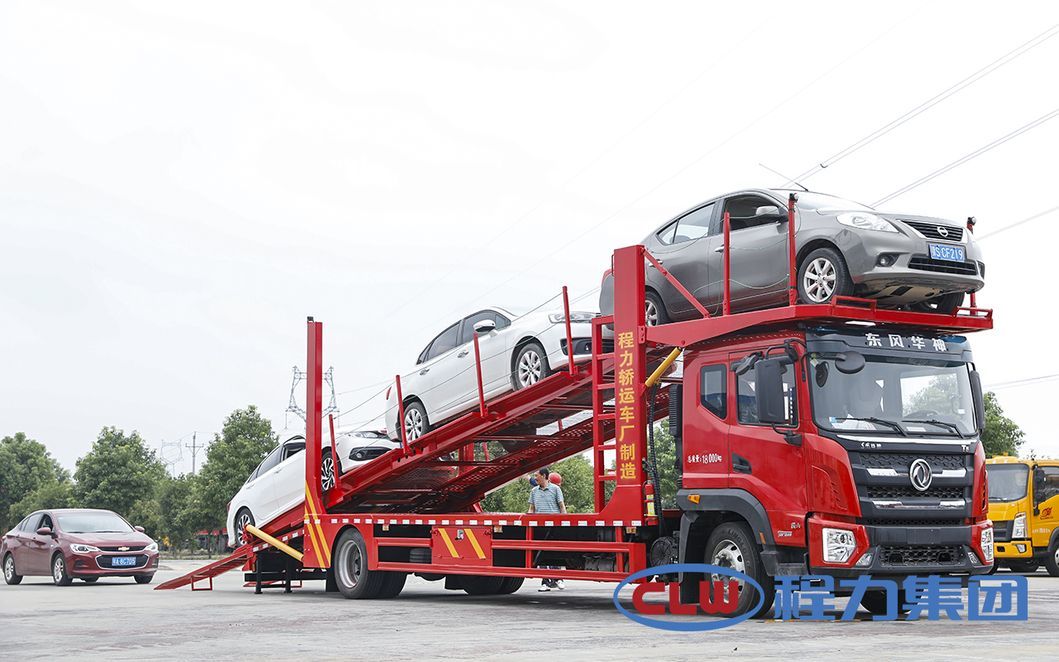

Truck Picture:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
