Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck

Chengli Special Automobile Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck

Certification : ISO9001, ISO14001, OHSAS18001, CCC

Place of Origin : China

Brand Name : CLW

Model Number : CLW

MOQ : 1

Price : 15000-35000 per unit

Packaging Details : Nude

Delivery Time : 65 working days after deposit

Payment Terms : 50% Deposit,Balance should be paid before ship out

Supply Ability : 500PCS/Week

Model NO. : Dongfeng DFAC

Type : Compactor

Volume : >15000L

Emission Standard : Euro 3

Transmission Type : Manual

Payload : 16T

Fuel : Diesel

Drive Wheel : 4×2

Brand : Dongfeng DFAC

Models : Medium

Usage : Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type

Condition : New

Color : White Red Green Yellow Black Camo Compress Garbage

Horse Power : 210HP

Truck Brand : Dongfeng Rhd

Capacity : 10cbm to 18cbm

Working Type : Rear Loading Compactor

Product Name : Refuse Waste Compactor Truck

Transport Package : Bulk, RO-RO, Container, Naked, Waxed

Specification : 5cbm 6cbm 7cbm 8cbm 9cbm 10cbm Compactor Type Garb

Trademark : Dongfeng RHD

Origin : China

HS Code : 8705909990

Package Size : 1.00cm * 1.00cm * 1.00cm

Package Gross Weight : 1.000kg

Customization : Available

After-sales Service : 12 Month

Warranty : 10 Year

Shipping Cost : Contact the supplier about freight and estimated delivery time.

  : Support payments in USD

Secure payments : Every payment you make on Made-in-China.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Manufacture : Chengli Special Automobile Co.,Ltd

Contact Now

Dongfeng DFAC 12m3 Garbage Transport Transfer Collection Compression Compactor Waste Truck

The garbage compactor truck usually called compressed waste truck, compression garbage truck, waste compactor truck, compactor garbage truck, etc. The compressed garbage truck compresses the garbage through the hydraulic mechanism. The hydraulic mechanism operates the movable plate or shovel to scoop the garbage out from the filler into the compartment and compresses it against a moving wall. The garbage loaded by the compressed garbage truck is 2.5 times that of the ordinary garbage truck.


Technical date :
Model CLW5182ZYSD Product Name Compactor garbage truck
Product Brand CLW Brand Overall Size 9040x2550x3200mm
Axes 2 Wheelbase 4700mm
G.Weight 18000kgs Curb Weight 10500kgs
Gearbox 6-speed Tyre size 10.00R20 18PR
Engine 210HP Power steering LHD or RHD
Upper structure parameters
Capacity 12 m3
Structure body, compartment, sub frame,filler, compressor, hydraulic and electric system, pipeline, sewage tank,pressure gauge,etc.
body shape Arc-shaped
Material Carbon steel Q235R
Sidewall 4mm thickness
Bottom 5mm thickness
Sewage tank 4mm carbon steel, 304 stainless steel is optional
Pressure Value 16Mpa
Pressing mode Automatic pressing, operated by hydraulic system
Compression ratio ≥2.5
Loading cycling time ≤25 second
Unloading garbage time ≤15 second
The above mentioned figures are approximate.
  • Optional equipments are included in these photographs
  • Specifications and dimensions are subject to change without notice.
  • Material : Anti-corrosion Steel
  • Material : Anti-corrosion Steel or High-tensile Steel
  • Material : High-tensile Steel

Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck
Application:
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.

Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck

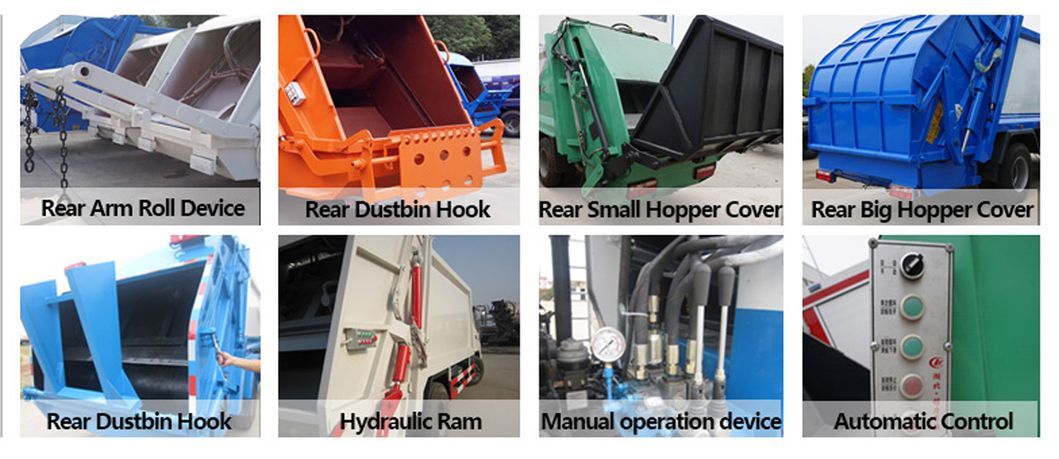

Details:
Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck

Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Dongfeng DFAC 12m3 Garbage Compression Truck 5cbm-10cbm Compactor Waste Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
