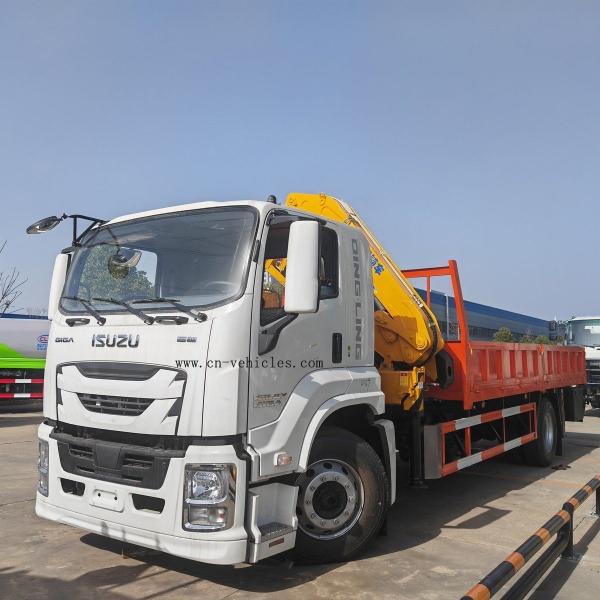

ISUZU Giga 204hp truck with SQ8ZK3Q 8ton Mobile Folding Crane
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
| General Technical Parameters |
| Overall Dimension | 11980×2500×3980 (mm) |
| Gross Vehicle Weight | 24900(Kg) |
| Curb Weight | 15800(Kg) |
| Chassis Specification |
| Chassis Brand | Giga |
| Drive model | 8*4 |
| Cabin | Double, Left Hand Driving, with air conditional |
| Number of Passengers | 3 |
| Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR |
| Power |
204hp |
| Emission standard | EURO 6 |
| Displacement | 8300(ml) |
| Fuel type | Diesel |
| Gearbox | 9Forwards & 1Reverse |
| Brake System | Air break |
| Wheel Base | 4500 mm |
| Front/Rear Axle Loading | 8000/11500(Kg) |
| Approach/Departure Angle | 23/12(°) |
| Overhang | 1250/3545(mm) |
| Tire | 11.00R20 |
| Max Driving Speed | 90(km/h) |
| Upperstructure Specification |
| Cargo Body | Dimension | 8600×2300×550(mm) |
| Material | Q235 carbon steel |
| Cargo Thickness | Side 1.5mm, Bottom 2.5mm |
| Working System | Boom Type | Straight 4-Arm telescopic boom |
| Crane | Crane Brand | SQ8ZK3Q |
| Range of Sprayer | 30m |
| Max Lifting Moment | 25(T.M) |
| Max Lifting Capacity | 16000(kg) |
| Max lifting height | 12(m) |
| Rotation angle | 360(°) |
| Installation space | 1150(mm) |
| Recommented power | 30(kw) |
| Maximum working pressure | 26(Mpa) |
| Max Flow | 63(l/min) |
| Crane weight | 3800(kg) |
| Oil tank capacity | 160(L) |
| Leg | Leg type | H type |
| Leg Span | 2.28-5.9(m) |
| Hydraulic system | Pressure | 18(M pa) |
| Capacity | 70(l) |
| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. |
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. |
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Application:
For general cargo lifting and other special things like timber and brick by changing other equipment.
Details :
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
