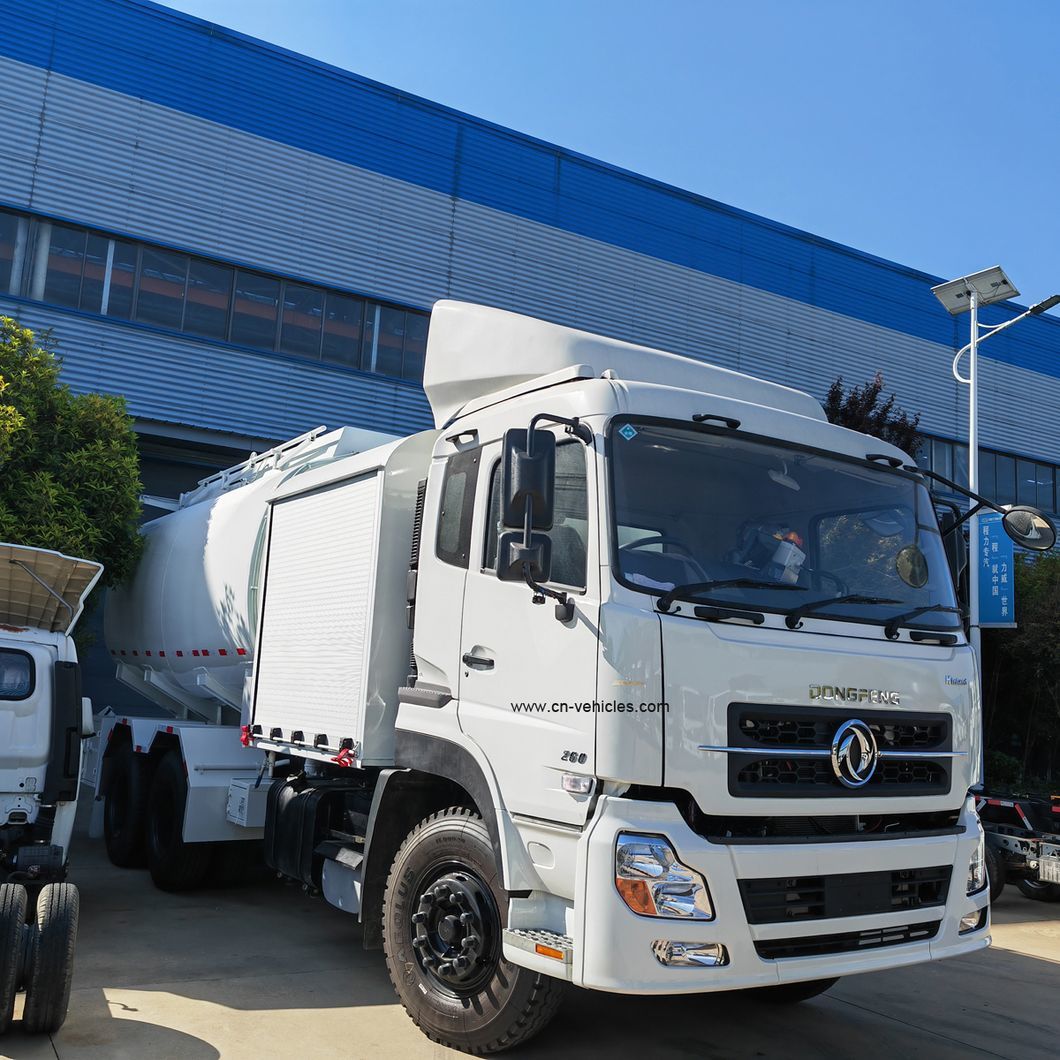

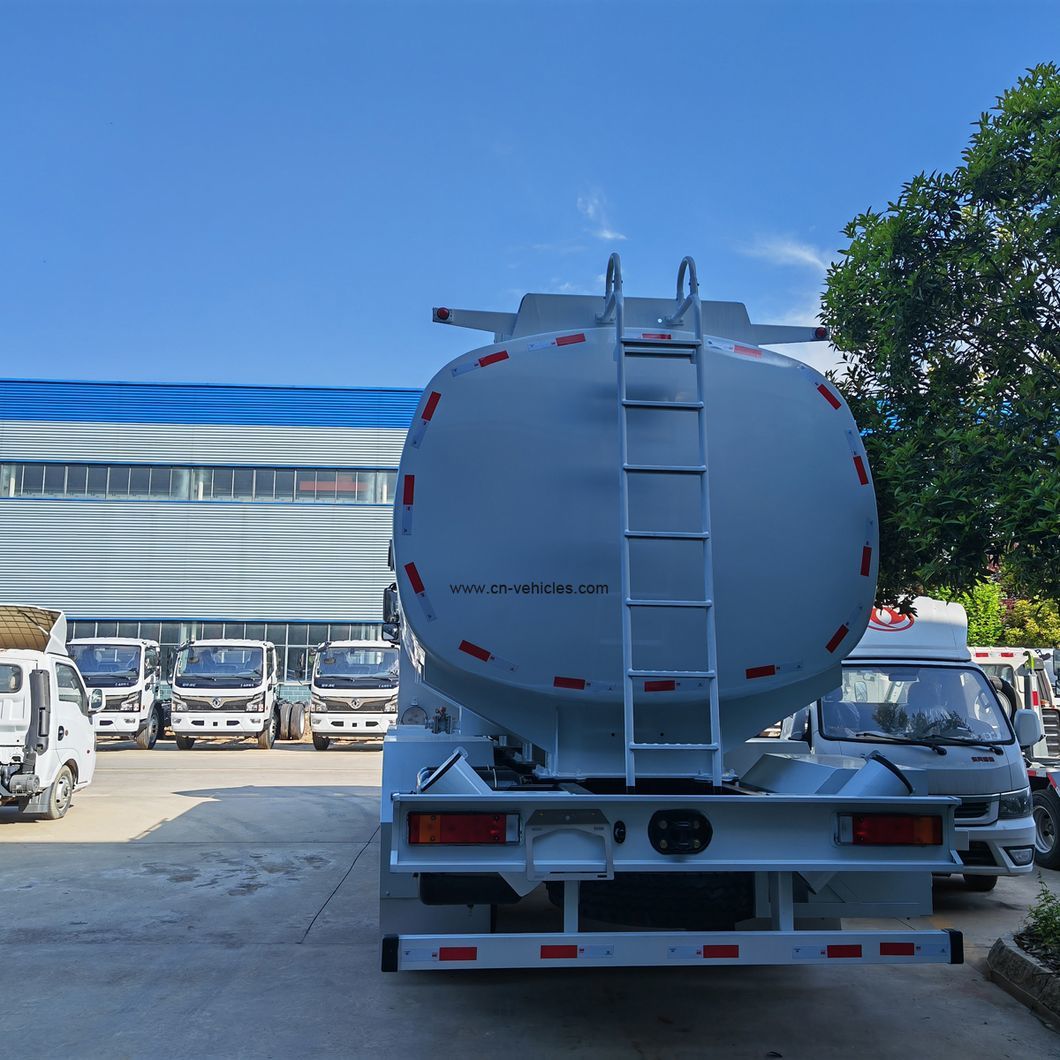

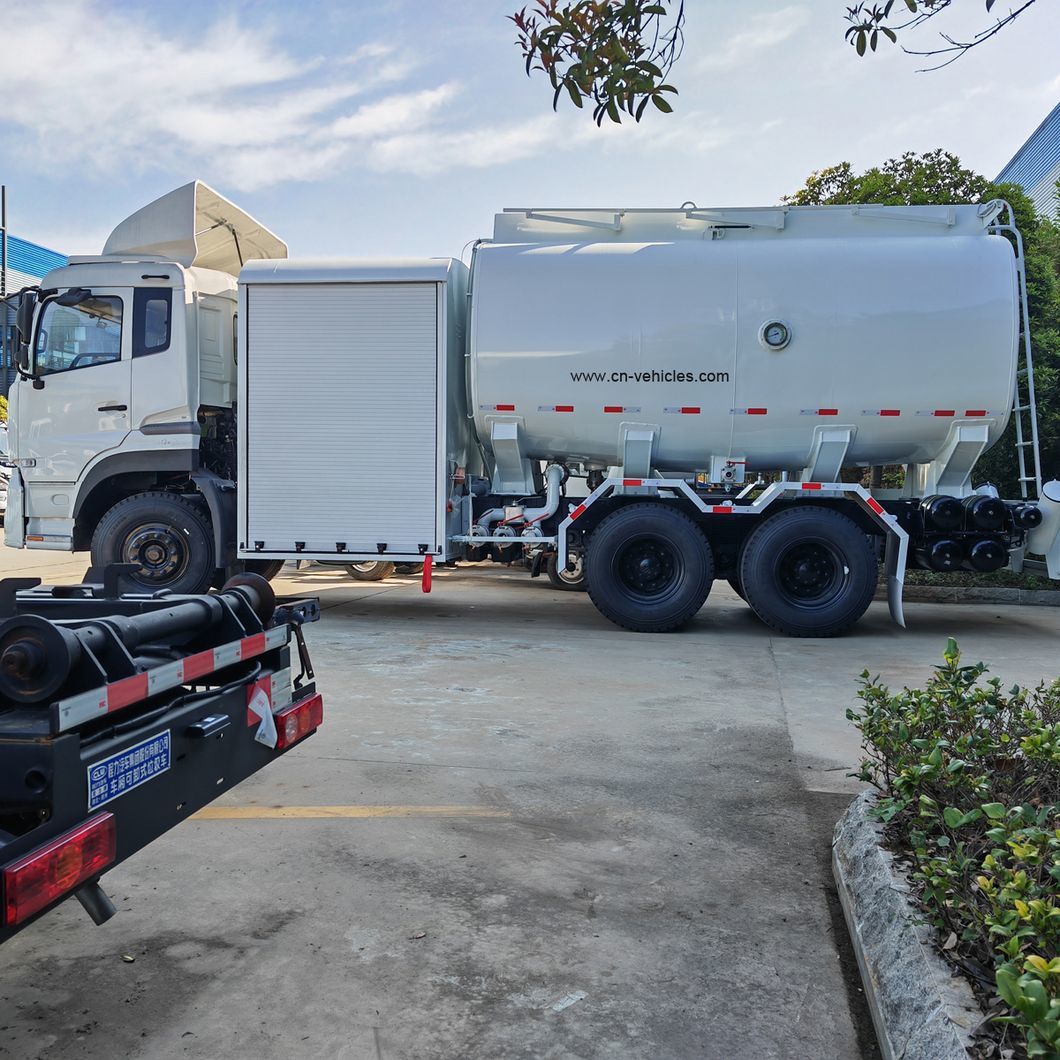

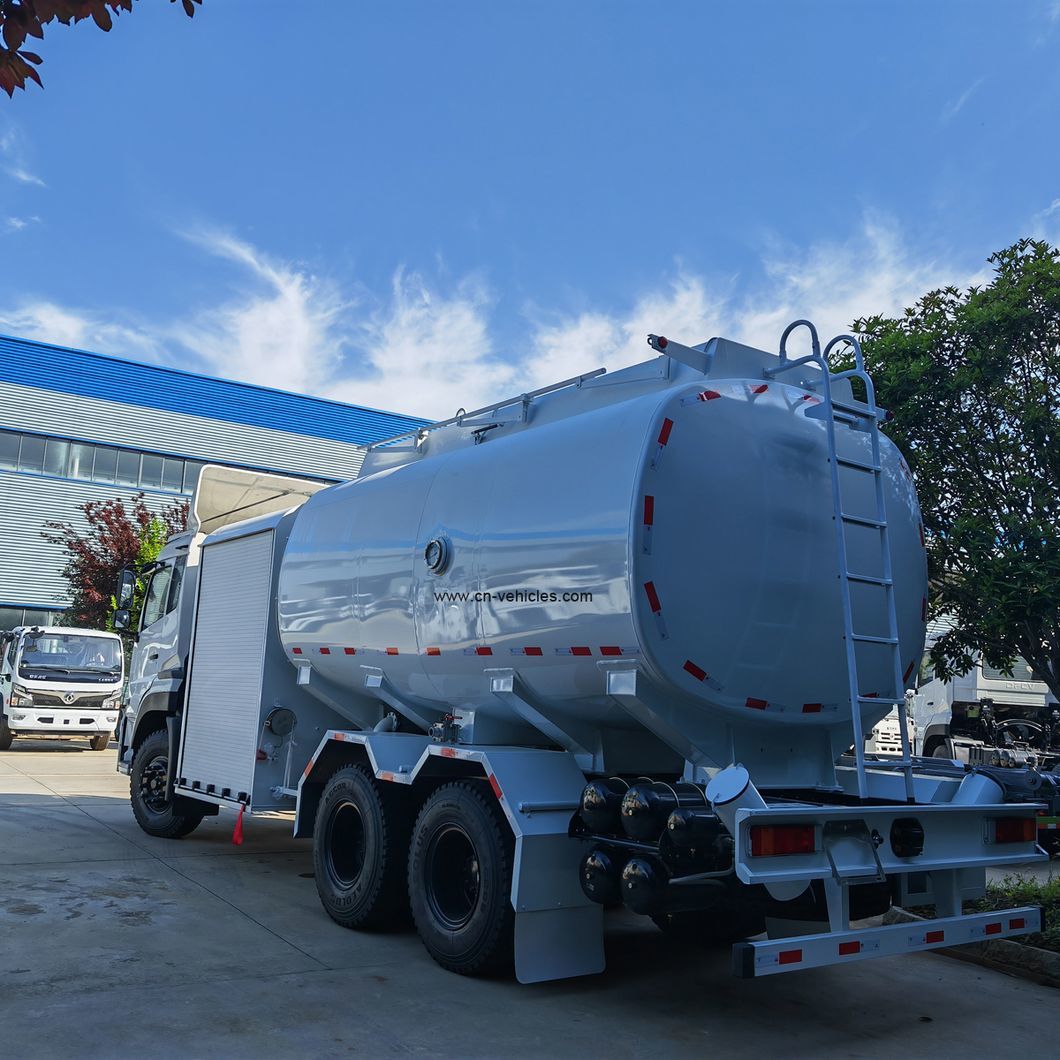

Dongfeng Kinland Plane Aviation Helicopter Jet Aircraft Refueling Truck
aircraft refueling truck consists of the chassis, the fuel tank assembly, fuel system, the pneumatic control system, the hydraulic system, the control room assembly, the instrument panel, the electrical system.
This type of gas vehicle is mainly composed of chassis, tank, the former cabinet, the oil pumping system, pneumatic control system, electrical systems, suitable for the airport, and from the air refueling station and airport apron, aircraft refueling. At the same time, the fuel oil and water, and accurate measurement of fuel gas.
Main function:
Fuel - the fuel in the fuel tank of the car, after filtering, metering, and injecting the aircraft fuel tanks or other oil equipment through the reel or platform;
The fuel in the fuel tank of an aircraft fuel tank is pumped back to the oil tank through the filter and measurement;
The fuel in the tank of the car;
Mobile pump station;
Oil - in the bottom of the tank with an external device.
1.1 The Purpose and Application Range of the Refueller.
It is mainly used for refuelling and defuelling the aircraft which equipped underwing refuelling interface in airport.
1.2 Working condition
This refueller is used on flat concrete or bitumen road in airport.
Temperature : -30°C~+46°C
Relative humidity:≤ 95%(25°C)
1.3 Main Function
1) Underwing refuelling--after filtering and measuring, the fuel oil in the refueller's oil tank is filled into the plane's oil box(or other containers) by the hose and underwing nozzle on the reel or platform.
2) Defuelling--after filtering and measuring, the fuel oil in the plane's oil box(or other containers) is filled into this refueller's oil tank by the hose and underwing nozzle on the reel or platform..
3) Cycling--use pump to stir oil in a cycling way.
4) Loading-- use the oil pump and other equipments to fill fuel oil into the tank through the bottom of it.
This type of gas vehicle is mainly composed of chassis, tank, the former cabinet, the oil pumping system, pneumatic control system, electrical systems, suitable for the airport, and from the air refueling station and airport apron, aircraft refueling. At the same time, the fuel oil and water, and accurate measurement of fuel gas.
Main function:
Announcement volume 5000-15000L, a set of gravity / pressure / meet the various types of aircraft refueling and fighter aircraft, civil aircraft, Boeing, airbus. The body of the tank and the pipe are made of stainless steel (the optional aluminum alloy). (optional imported or domestic filter),
can be customized according to customer requirements.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
