ISUZU Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid LeverPotable water tanker (also called drinking water tanker, stainless steel water tanker, agua potavelwater, tank truck, water truck, water lorry, water tanker, watering truck, Camión cisterna) is used to transport and supply potable water, widely used in drought relief.
We adopt non-toxic treatment inside tank or tank made of stainless steel, so it is very suitable for transporting drinking water.
I suzu Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid Lever Chassis:
CNHTC trucks , ISUZE, Beiben trucks , Shacman trucks , FAW trucks , Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks or others Chinese trucks Chassis
ISUZU Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid Lever Technical Date:
| Main Technology Parameter |
| Model Name | Isuzu water tanker truck 10000L |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights |
| Rated payload weight(kg) | 10000 |
| Curb weight(kg) | 4500 |
| Dimensions |
| Wheelbase(mm) | 4475 |
| Overall Dimension(mm) | 7650*2300*2650 |
| Box dimension | 10000L(2700 gallon) |
| Max speed(km/h) | 110 |
| Engine |
| Engine model | 4HK1-TCG40(190HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 5.193L |
| Max. output (kw) | 139kw |
| Drive Line |
| Transmission | MLD 6 speeds ,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake OR air brake |
| Cab |
| Cabin | I suzu 700p |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle |
| Front axle | 4tons |
| Rear axle | 7 tons |
| Tire specification |
| Tire specification | 8 .25R16 ,8.25-16 standard tire,6 tires+1 spare tire |
| Water truck |

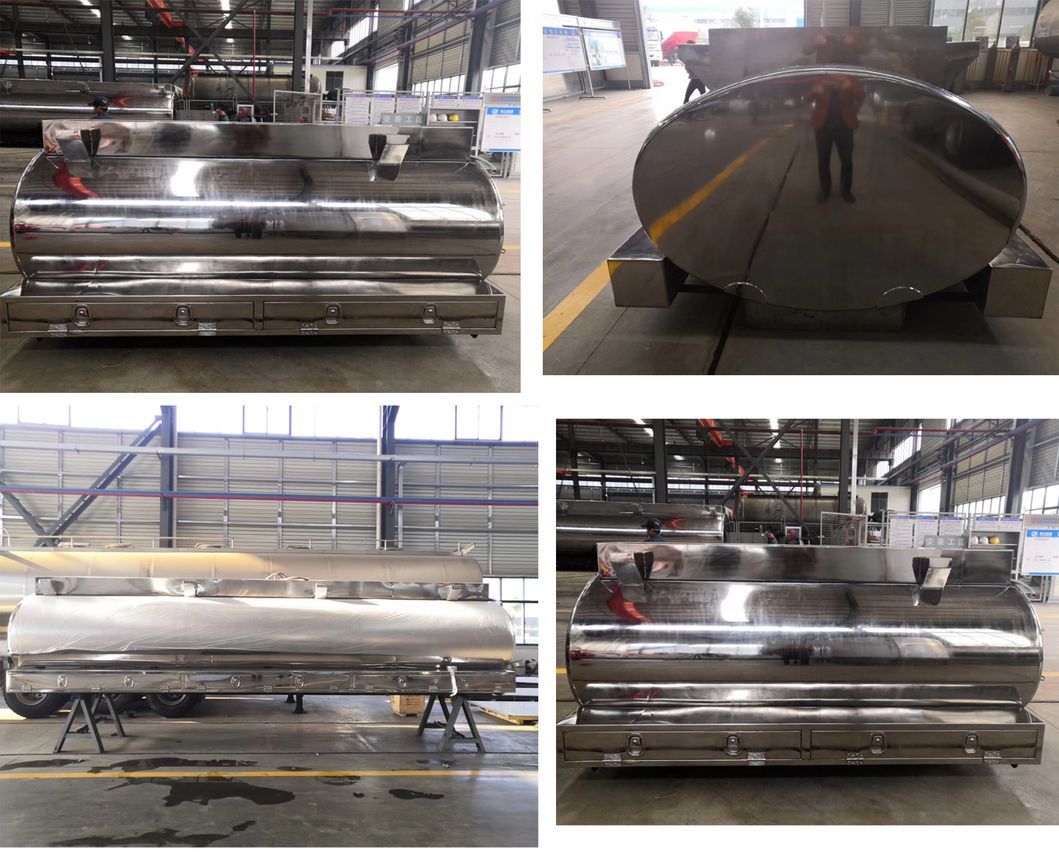

| Water tanker material | Stainless steel 304-2B Food grade |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h |
| Head of delivery(m): 90m |
| Self-priming function(min/4m):1.5 |
| Efficiency(%):95% |
| Related rotate speed(r/min)1180 |
| matched power(kw):22 |
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
