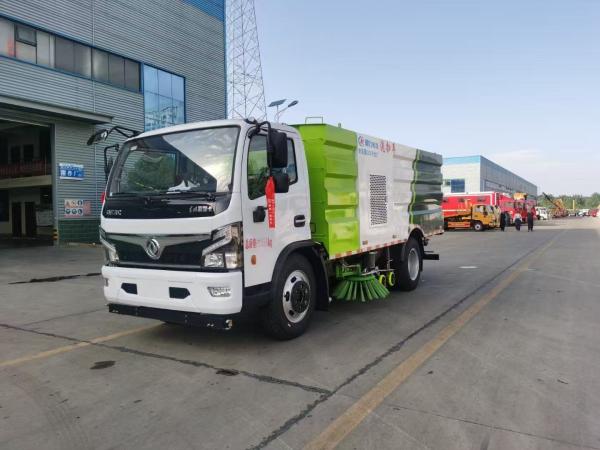

Dongfeng Road Washing and Sweeping Vacuum Sweeper Street Cleaning TruckSweeper Truck is an efficient environmental sanitation truck equipped with functions of sweeping road and high pressure cleaning road. It is widely used in city streets, road, station, square etc. Road cleaning truck are mainly composed of chassis, box (garbage box and water tank), sweep system, auxiliary engine, fan system, cleaning system, suction system, dust system, hydraulic system and electrical control system. The garbage box and water tank are made of super thick stainless steel plate. In order to prevent the early damage of the water tank and the garbage box because of corrosion, all the parts of the tank and the garbage box are made of super thick stainless steel, which greatly prolongs the service life of the whole truck.
A large area filter net is set at the top of the box to to reduce the clogging and to ensure the fluency of suction, the top of the box is set with a flow guide slot, which improves the dust effect, makes the garbage accumulation even and improves the effective capacity. Road sweeper truck is equipped with 2 brushes, the cleaning device has the function of automatic barrier protection or automatic reset. Road cleaning truck uses a unique hand pressure pump emergency lifting system: when the auxiliary engine fails and can not start the auxiliary engine, the garbage box is raised to facilitate the maintenance of the worker. The hydraulic valve group adopts the famous leading brands: the test pressure can reach 35MPa and the flow rate is 300L/Min. The dynamic, static and fatigue life of various industrial hydraulic valves and walking mechanical hydraulic valves can be accurately tested.
Using ultra wide mouthpiece, inside have long row of high pressure water spray bar is near the ground, have a big water impact force, can be direct make the sewage to suction port, efficient.
Technical date
| Dongfeng Road Sweeper Truck Technical date |
| General | Descriptions | Specifications and types |
| Truck Brand | CLW BRAND |
| Chassis Brand | Dongfeng |
| Approx. Dimension | 5800*2140*2200 mm |
| GVW./Curb Wt. | 3495/ 3200 kg |
| Cab | Cab Capacity | 2 persons' seat |
| Air Conditioner | Air Conditioner is optional |
| Chassis | Drive Type | 4X2,Right hand drive |
| Fuel Type | Diesel |
| Engine Make & Model | Chaochai |
| Power | 82hp |
| Emission Standard | EURO III |
| Brake | Air Brake |
| Wheelbase/No.of axle | 3300 mm / 2 |
| Tyre Specfication | 7.00R16 |
| Tyre Number | 6 tyres and 1 spare tyre |
| Max Speed | 90 km/h |
| Paint | Automative metallic paint |
| Brushes | 4 unit Per truck |
| Water Spray to Brushes | With |
| Capacity | Garbage Tank Volume:4.2CBM |
| Material :Stainless steel |
| Water Tank Volume:1.2CBM |
| Material :Carbon steel |
| Auxiliary Engine | JMC |
| Rated Power | 64KW |
| Work Width | 2.8m |
| Inhalation particle size | φ120mm |
| Maximum operating capacity | 13000SQ/h-52000SQ/h |
| Motor | Sanyo |
| Control switch | S chneider |
| Solenoid valve group | Hypres |
| Clutch | Continuously variable automatic |
| Fan | Maintenance-free centrifugal automatic |
| Water pump | Zhonglian Polaris Electronics |
| Indicator light | Rear LED arrow |
| Emergency system | Hand pump |
| Dump function | Garbage lift |
|
|
|
|
|
|
|
| Free Spares Part |
| Nylon brush | 100 | PCS |
| 200mm vacuum tube | 1 | PCS |
| Water filter element | 1 | PCS |
| Special fan belt | 1 | PCS |
| Rear door sealing strip | 1 | PCS |
| Bottom of the suction cup | 1 | PCS |
| Suction port sealing ring | 1 | PCS |
| Sweeping water nozzle | 1 | PCS |
| Sweep the middle shield | 1 | PCS |
| Suction Cup Wheel | 1 | PCS |
Chassis brand :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Application:
The Vacuum Sweeper Truck is mainly used for road dust cleaning and suction. It is widely used in seaports, coal mining places, urban roads, highways, airports, docks, Bridges, squares, residential areas etc to make the places.
A Road Suction Truck can largely save labor cost and working time. To use the Sweeper Truck one hour can match a person sweeping the road all day!
Details :
1. With auxiliary engine. It is with JMC 64KW vice engine and supply enough power for the suction devices. The vice engine is connected to the fan adopts automatic centrifugal clutch, can guarantee the vice engine no-load start.
2. Vacuum device and suction nozzle arrangement adopts "wide of suction nozzle by the main suction + left and right side suction nozzle structure arrangement. The suction cup device has the function of avoiding and resetting automatically when encountering obstacles.This function can effectively solve the problem of easily damaged dust collector. Full floating suction nozzle, with the characteristics of large vacuum width, high vacuum efficiency, and conducive to the adjustment and maintenance of suction nozzle.
3. The liner of dustbin adopts double structure, the inner layer is all stainless steel;The high efficiency filtration of 4 sets of polymer filter cylinders can effectively reduce the secondary pollution caused by dust.
4. The front part of the truck is equipped with an automatic emergency system of hand pump.The tail is equipped with an optional water spray dust removal device;Open and close the garbage box door and garbage dump can be operated in the driving room, which is safe, convenient and reliable.
5. The filter cylinder of the vacuum truck can effectively separate the dust absorbed by the vacuum truck so as to avoid secondary dust pollution. There are two cleaning methods for the filter cylinder of the vacuum truck, one is equipped with automatic pulsed dust cleaning, and the other is disassembled and cleaning. Both are easy to operate
