1. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.
2. One side waterproof P4/P5/P6/P8 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
3. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
4. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
5. The pixel's pitch for the LED screen could be P6, P5, P4, P3, etc.
6. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.
Waterproof China Customized Outdoor led video food advertising trailer Feature:

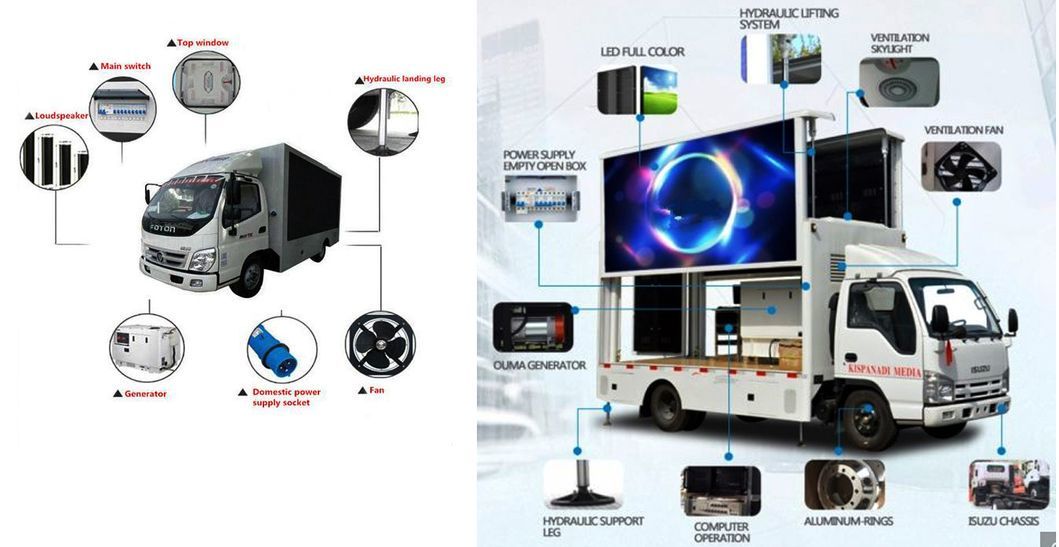

The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated computer control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, 4 waterproof column loud speakers, and other tiny accessory facilities within the body.

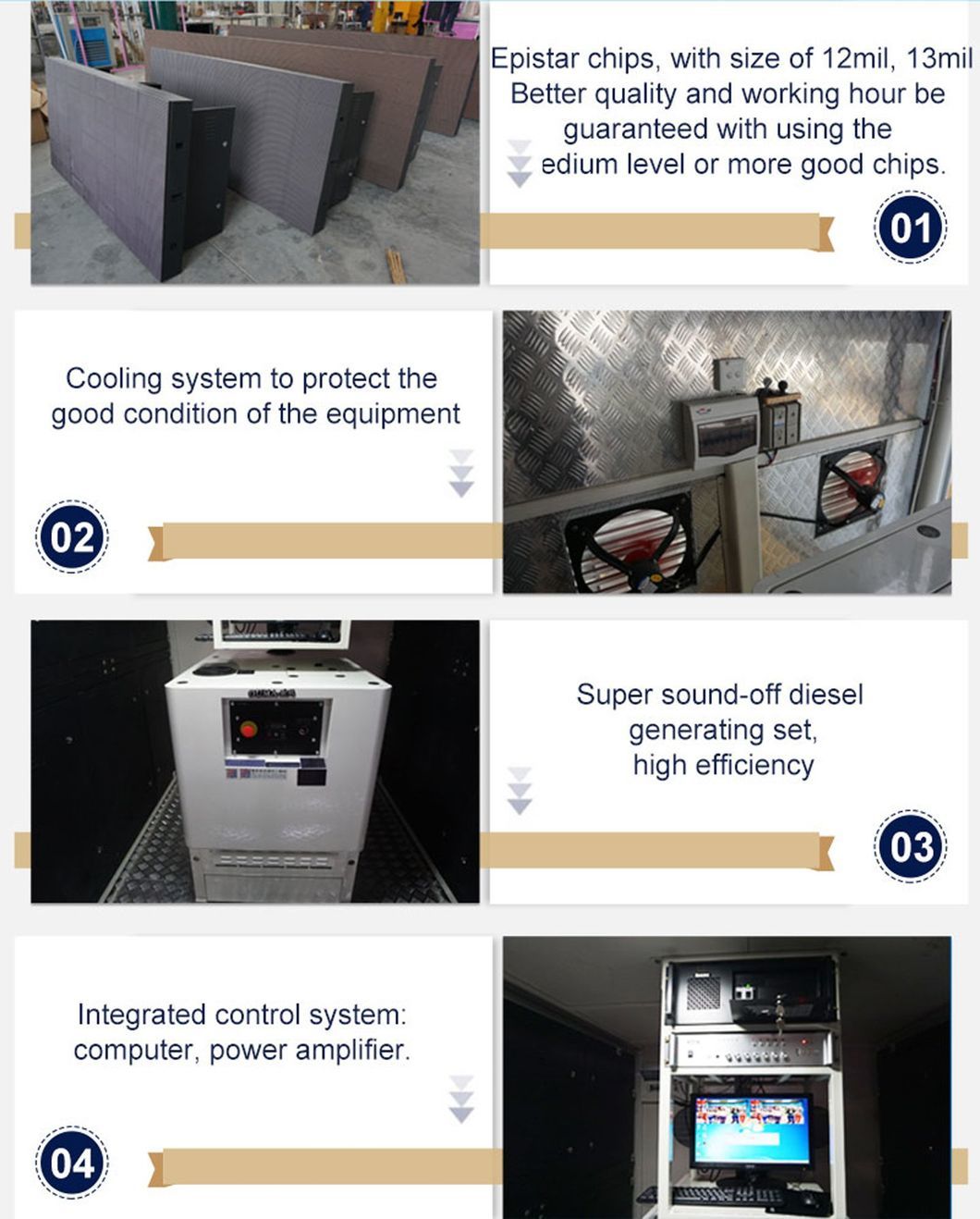

1. LED Screen: It uses imported EPISTAR chips, high level of illumination, long life-span, and high refresh frequency and easy to maintain.
2. Generator set: It is specialized designed for this style. Lower noise and stable.
3. Lifting system of LED screen: We use the electric puts as the lifting system, since the synchronization error of two Electric puts is only 1mm.
4. Vehicle air-conditioner: Its most important function is cooling the LED screen and the generator, also it could well cool the carriage, and provide a very comfortable environment for the staffs. The vehicle air- conditioner also has excellent quake-proof index and waterproof index.
5. Multi-media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons together. The speakers are equipped in the frame of carriage. With it, you could do on-site live recording and broadcasting, television program broadcasting, live karaoke and so on.
Waterproof China Customized Outdoor led video food advertising trailer :
| Type of Screen | Customized 3 sides full color LED screen, roller screen and lifting screen |
| LED Screen Size (L*H) | 3840X1760 (mm), can be customized |
| Led Side Screen Area | 6.8 m2 |
| Screen Lift Height | 1.5 m |
| LED's Pixel Pitch | Optional:10/8/6 mm |
| Roller/LED Screen Size | 3840X1460/1760 (mm) |
| Rear Screen Size | 1600X1600 (mm) |
| Standard Accessories | 1> 3 sides waterproof P6 full color LED screen;
2> 5cm composite steel box, aluminum floor;
3> Inside and outside the electric distribution box;
4> Loop ventilation cooling system; 4 fans;
5> 15KW Ouma silent diesel generator;
6> One industrial computer with control system;
7> 4 waterproof speakers, 1 amplifier, 1 console;
8>Left side hydraulic lifting system |
Waterproof China Customized Outdoor led video food advertising trailer Application:
LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.
