Dongfeng Selfloading Flatbed Excavator Loader Harvester Transport TruckExcavator carrier lorry (also called flat bed truck , excavator transport truck , machinery transport truck , flatbed lorry , low bed truck , excavator carrier truck , asphalt paver carrier truck , lorry carrier truck ) is used for transporting abject that is non removable or machinery that cann't be driven on road , such as excavator , loader , harvester , etc . It's widely used in the construction , agriculture field .
To load machinery easily , there is a tilt ramp at back of flatbed , When loading machinery on , turnover the ramp to ground , So there could be a slope between ground and flatbed . When finished loading , The ramp should be fold up and fastened by manual . According to special requirements , The ramps could be hydraulic fold and extension .
According to its driven type , there is 4*2, 6*4,8*4 flatbed truck .
Technical date:
| ITEM | UNIT | DESCRIPTION |
| Vehicle |
| DONGFENG tow truck wrecker |
| Overall dimension | mm | 7470×2350×2440 |
| Flatbed dimension | 5550×2300 |
| Curb weight | kg | Appro×4910 |
| Flatbed loading weight | Appro×4000 |
| Carriage arm loading weight | Appro×3000 |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 |
| Approach/departure angle | ° | 24°/10° |
| Standard configuration | 1) 4 tons winch 1 set |
| 2) Auxiliary wheel 2pcs |
| 3) Rear towing arm assembly 1 set |
| 4) Steel wire rope 25m |
| 5) Bunding belt 4pcs |
| 6) Rear tail lights LED,both sides electronic lights. |
| 7) Tool box |
| Working Performance | 1. It can tow two cars. |
| 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. |
| 3. Winch speed : 8m/min. |
| 4. Flatbed working stroke: 2680mm |
| 5. Flatbed minimum tilt angle: 10° |
| 6. Carriage arm telescopic stroke: 1180mm |
| 7. The max effective length of the carriage arm: 1300mm |
| Chassis Parameter |
| Cabin | Single row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers |
| Drive type | 4×2,left /right hand dirve |
| Engine | Brand : DONFGENG CHAOCHAI POWER |
| Model :CY4102-E3C, 120hp |
| Type : diesel, 4 cylinder, turbocharged, intercooled. |
Chassis brand
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

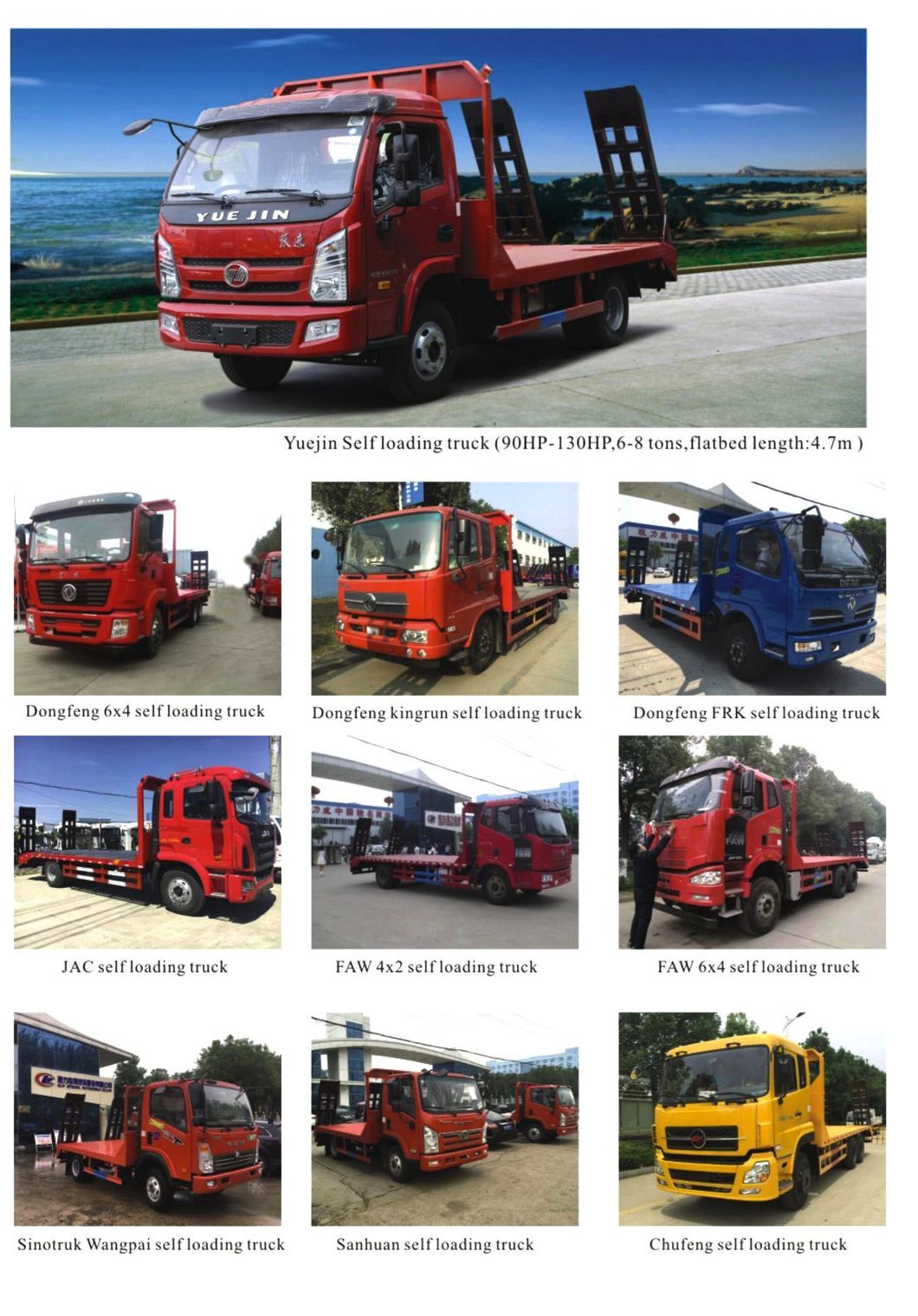

More Excavator carrier lorry :
