Shacman Jetter System Sewage Tanker Hydrovac Truck typically combines a high-pressure jetting system for clearing blockages in sewers, pipelines, and drains, along with a vacuum system for suctioning and transporting waste materials. These trucks are commonly used for municipal sewage cleaning, pipeline maintenance, and industrial applications.
Here’s an outline of the typical features and configurations for these kinds of trucks:
Jetting System:
High-Pressure Jetting: The truck uses a high-pressure water pump (often in the range of 200–300 bar) to clear blockages in pipes or sewer lines. These systems can include rotary nozzles, sewer cleaning nozzles, or spiral nozzles for effective cleaning.
Water Tank: The truck usually includes a large water tank (ranging from 3,000 to 12,000 liters, depending on the model) to supply water for the jetting process.
Vacuum System:
Vacuum Pump: This is typically powered by the truck’s engine or a dedicated PTO (Power Take-Off) unit. The vacuum system is used to remove waste and debris from the cleaned pipes.
Suction Tank: Once the waste is suctioned out, it's stored in a sealed waste tank, which can vary in capacity (commonly 5,000 to 15,000 liters).
Hydrovac Excavation (Optional):
Some models are also equipped with a hydrovac system, which allows for non-destructive digging. The truck uses a high-pressure water jet to break up soil and debris, and then the vacuum system sucks up the material. This is particularly useful in sensitive environments where traditional digging may cause damage to utilities or infrastructure.
Chassis:
Shacman offers several truck chassis configurations, including 4×2, 6×4, and 8×4, with varying engine powers from 170 hp to over 400 hp. The chassis is designed to carry both the water tank and waste tank, along with the jetting and vacuum pumps.
Hydraulic System:
Hydraulic Boom: Some models are equipped with a hydraulic boom for better maneuverability and positioning of the nozzle and vacuum hose.
Hose Reels: Typically, the truck includes a hose reel system for storing and deploying both the jetting hose and vacuum suction hose.
| Truck Specification |
| truck model | CLW5253GXWT10 |
| Cab | SHACMN L3000 Flat-top single row cab, with power steering. Electronic flameout, A/C |
| Driving Type | 4x2 Left hand driving |
| Max Speed (km/h) | 90 |
| Overall dimension(mm) | 8550×2500×3455 |
| GVW( kg) | 19000 |
| Mass in working order ( kg) | 8575 |
| Wheelbase(mm) | 4600 |
| F/R track base (mm) | 2022/1830 |
| F/R overhang (mm) | 1500/2380 |
| Approach/Departure Angel | 16/14 |
| Tire | 10.00R20 (10+1) |
| Clutch | Single-plate dry diaphragm spring clutch |
| Steering | Hydraulic steering with power assistance |
| Gear box | 8-speed |
| Bridge | Front axle | 4.8T |
| Rear axle | 10T |
| Enging | Model | WD6.210E32 |
| Fuel Type | Diesel fuel |
| Type | Water-cooled six-stroke,, direct injection, turbocharged |
| Exhaust(ml) | 6700 |
| Max output power/rotate speed (hp /rpm ) | 210/2200 |
| Max torque/rotate speed(N.m/rpm) | 1050/1100~1600 |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy |
| Auxiliary brake | engine exhaust brake |
| Eletric system | 24v |
| Upper-Body specification |
| Volume of tank | 10000l |
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client |
| Material of tanker | 5mm Carbon stell (Q235) |
| Special function | Suction height | ≥9(m) |
| Suction time | 250(S) |
| Maximum Inclination Angle | ≥45° |
| maximum vacuum | ≥11 MPa |
| Lifting time | ≤45 S |
| the Cover opening Angle | ≥75° |
| The cover opening time | ≤25 S |
| Suction pipe | 3m length and 100 mm in diameter |
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each |

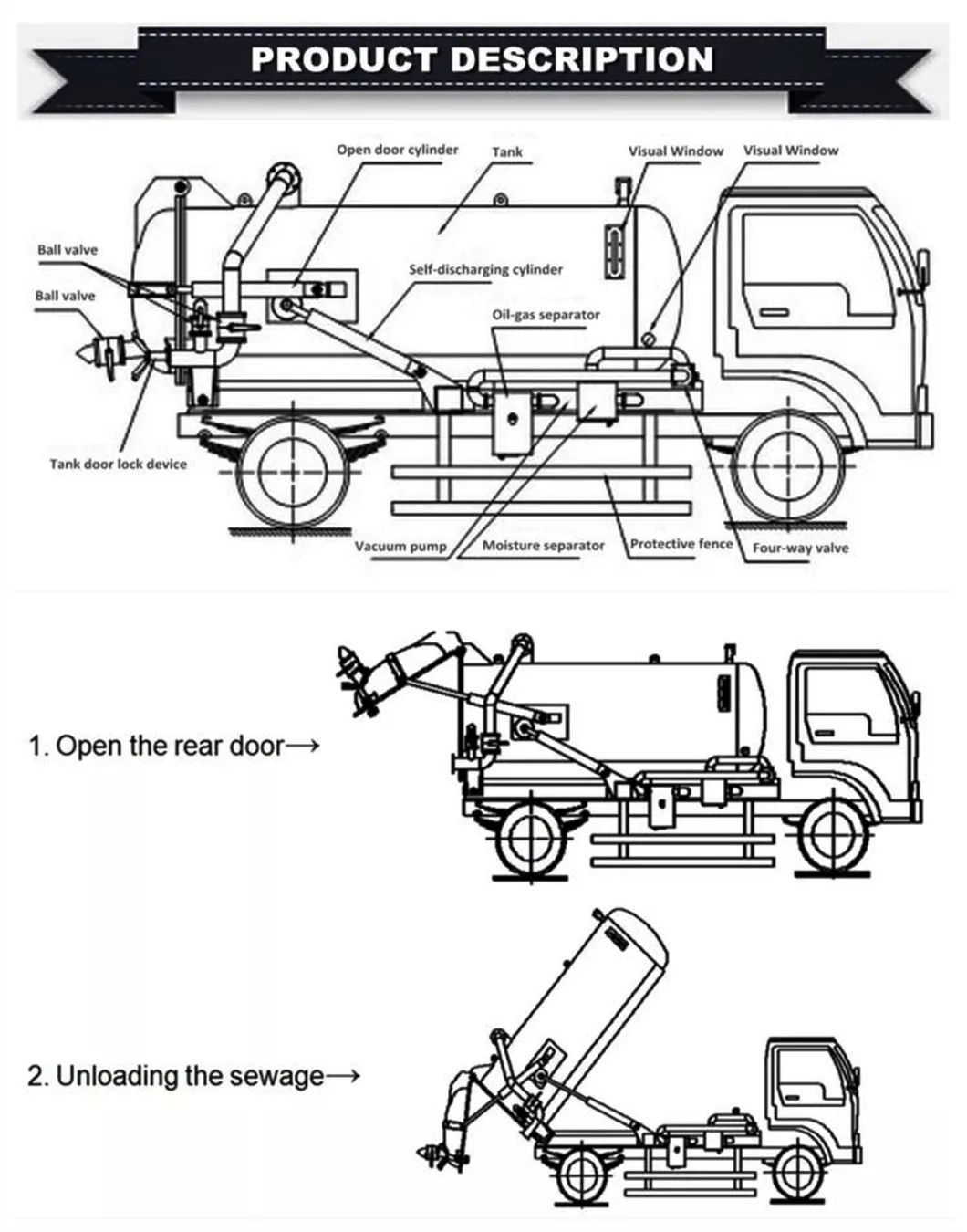

| Fittings | Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete on top of tank |
vacuum pump
| pump type | SK-12 |
| motor power (kW) | 11 |
| weight (Kg) | 460 |
| pump speed (r.p.m) | 1440 |
| suction pressure (MPa) | 5.4 |
| diameter (mm) | 80 |
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. |
