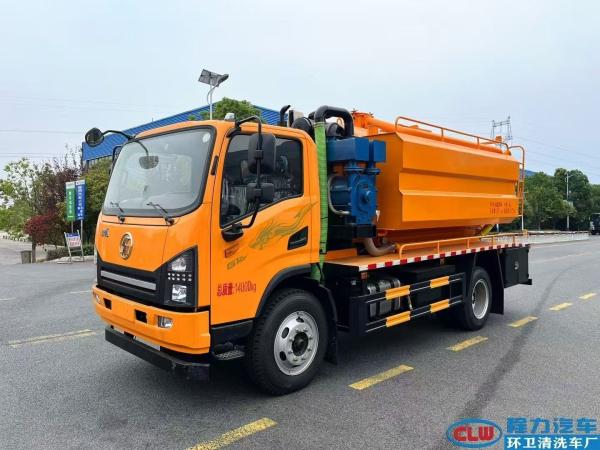

Shacman High Pressure Fecal Truck , Vacuum Sewer Suction Truck

Certification : ISO9001, ISO14001, OHSAS18001, CCC

Brand Name : CLW

Model Number : CLW

Place of Origin : China

MOQ : 1 unit

Price : 15000-35000 per unit

Packaging Details : Nude

Delivery Time : 65 working days after deposit

Payment Terms : 50% deposit,Balance should be paid before ship out

Supply Ability : 500PCS/Week

Model NO. : Shacman

Emission Standard : Euro 3

Payload : 8T

Transmission Type : Manual

Fuel : Diesel

Tank Volume : 160000L

Drive Wheel : 6x4

Hoesrpower : 251-350hp

Condition : New

Name : Fecal Suction Truck

Transport Package : Bulk, RO-RO, Frame, Container

Specification : 10100*2500*3850mm

Trademark : Shacman

Origin : China

HS Code : 8503009090

Customization : Available

After-sales Service : 10 Year

Warranty : 12 Month

Shipping Cost : Contact the supplier about freight and estimated delivery time.

  : Support payments in USD

Secure payments : Every payment you make on Made-in-China.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Manufacture : Chengli Special Automobile Co.,Ltd

Contact Now

Shacman High Preesure Fecal Sewage Vacuum Suction Cleaning Truck

Shacman High-Pressure Fecal Sewage Vacuum Suction Cleaning Truck is designed for heavy-duty waste management, sewage suction, septic tank cleaning, and high-pressure water jetting applications. These trucks are built to meet the demands of municipal waste services, industrial wastewater management, and emergency flood clean-up, making them an essential tool in the sanitation industry.


Applications:
Septic Tank Cleaning: The truck is highly effective for cleaning residential and industrial septic tanks, removing fecal and sewage waste from these systems.

Sewer Cleaning: The truck is ideal for municipal sewer systems, handling both sewage suction and high-pressure jetting for clearing blocked pipelines.

Waste Management: It’s widely used in waste disposal services and industrial waste removal, particularly for wastewater and sludge disposal.

Emergency Waste Removal: Useful in flooded areas, natural disasters, and hazardous spill clean-ups where large amounts of water or waste need to be quickly removed.

Pipe & Drain Cleaning: The high-pressure jetting system is useful for cleaning and clearing drain lines, industrial pipes, and sewage pipes of debris, grease, and blockages.

Truck Specification
truck model CLW5253GXWT10
Cab SHACMN L3000 Flat-top single row cab, with power steering. Electronic flameout, A/C
Driving Type 4x2 Left-hand driving
Max Speed (km/h) 90
Overall dimension(mm) 8550×2500×3455
GVW( kg) 19000
Mass in working order ( kg) 8575
Wheelbase(mm) 4600
F/R track base (mm) 2022/1830
F/R overhang (mm) 1500/2380
Approach/Departure Angel 16/14
Tire 10.00R20 (10+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 8-speed
Bridge Front axle 4.8T
Rear axle 10T
Enging Model WD6.210E32
Fuel Type Diesel fuel
Type Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml) 6700
Max output power/rotate speed (hp /rpm ) 210/2200
Max torque/rotate speed(N.m/rpm) 1050/1100~1600
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Eletric system 24v
Upper-Body specification
Volume of tank 10000l
Color Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker 5mm Carbon stell (Q235)
Special function Suction height ≥9(m)
Suction time 250(S)
Maximum Inclination Angle ≥45°
maximum vacuum ≥11 MPa
Lifting time ≤45 S
the Cover opening Angle ≥75°
The cover opening time ≤25 S
Suction pipe 3m length and 100 mm in diameter
Hose Racks Fitted on both sides of tank, to accommodate a minimum of seven hoses each
Fittings Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete on top of tank
vacuum pump
 pump type SK-12
motor power (kW) 11
weight (Kg) 460
pump speed (r.p.m) 1440
suction pressure (MPa) 5.4
diameter (mm) 80
Brief introduction of function It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.


Shacman High Pressure Fecal Truck , Vacuum Sewer Suction Truck
Shacman High Pressure Fecal Truck , Vacuum Sewer Suction Truck
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Shacman High Pressure Fecal Truck , Vacuum Sewer Suction Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
